Brief introduction:

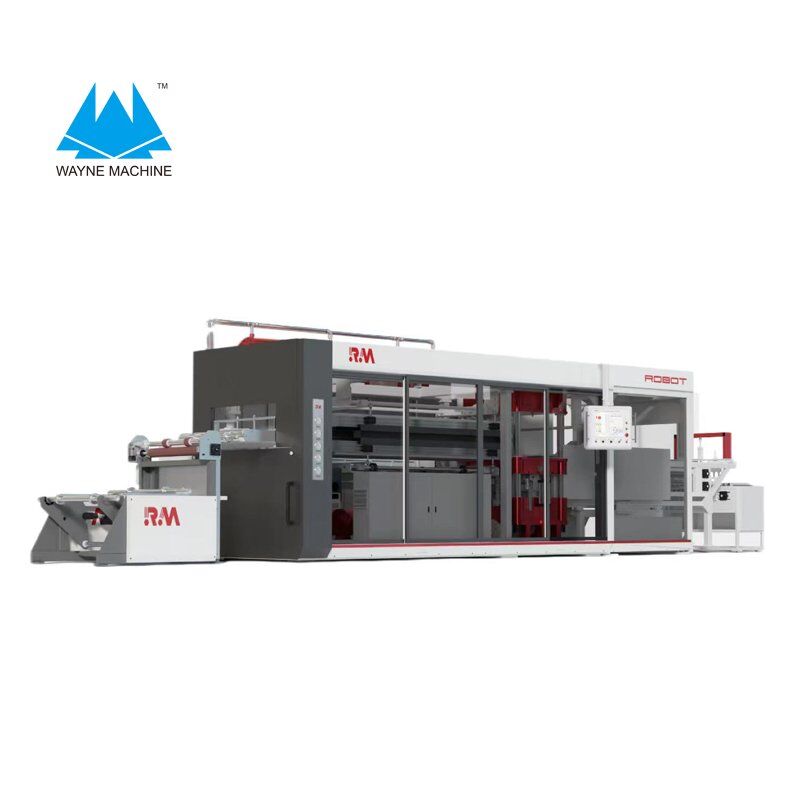

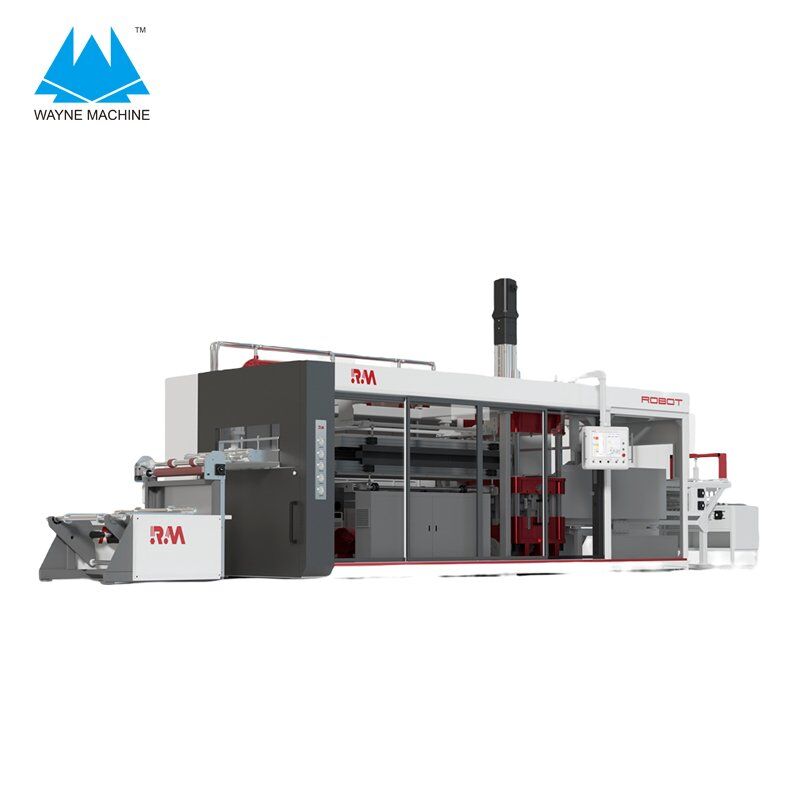

The RM-2RH model two station thermoforming machine is available for plastic cups/ lunch box and other food containers.

It has two main advantage:

1. High working capacity (max forming size: 820*620mm )
2. Fully automatic (with the robot arm stacker) and will help to reduce the labor cost
3. ecomonic power consumption (＜70kw/hr)

Parameter list:

Suitable materials	PP、HIPS、PET、PS、PLA
Sheet width	500mm-840mm
Sheet thickness	0.4-2.5mm
Max.Forming area	820mm×600mm
Min.Forming area	460mm×400mm
Height of downward forming	≤180mm
Max.Rate of production	≤25Times/min (depends on detailed product)
Height of opening and closing mould	Stroke of lower moving mold table
Max.clamping force	85 Ton
Electric power	183kw heating power+40kw motor power
Power supply specification	AC380v50Hz,4P(50mm2)+1PE(25mm2) three-phase five-wire system
Air pressure	0.6-0.8MPa
Air consumption	About 5-6m³/min
Machine size	9.0M(L)*2.20M(W)*3.20M(H)
Total weight	About 22ton
