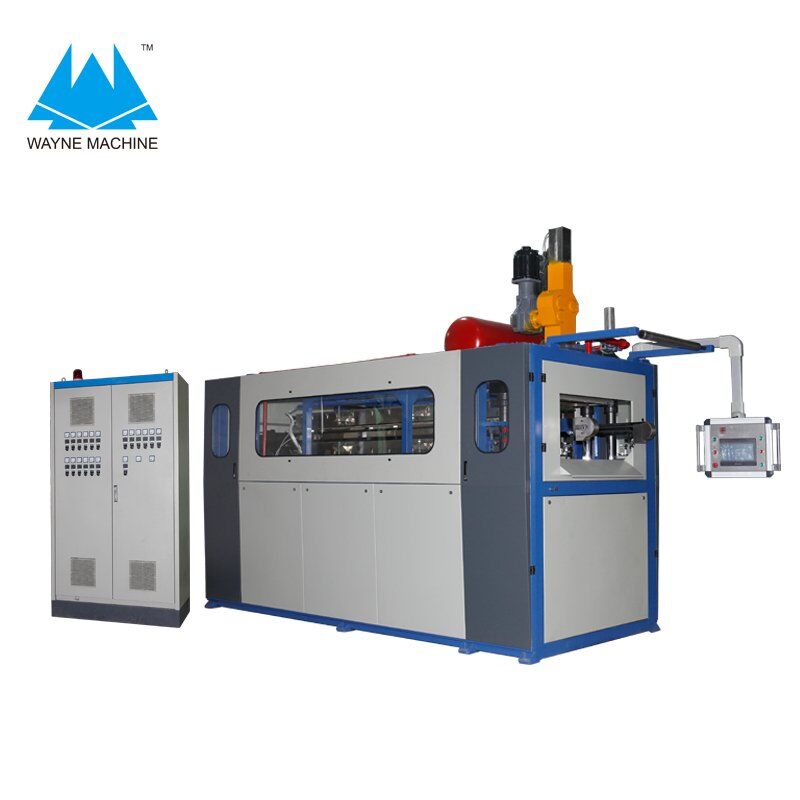

The 750-520 model thermoforming machine is used to produce the plastic cups, bowls, lids, lunch boxes and other food containers. When equipped with the robot arm stacker, it woule be highly automatic running, which will save your labor cost a lot.
| Model | HY750-520 |
|---|---|
| Available material | Biodegradable material, HIPS, PET, PP |
| Available products | other plastic food container, Plastic bowl, Plastic cup, plastic cup lid, plastic lunch box |
| Max capacity | 15-30 circles/min |
| Max cutting size | 700*400mm |
| Max forming size | 700*520mm |
| Max forming height | 200mm |
| Power supply | 3phase; 380V |
| Dimension | 7.5* 2.3* 3 m |
| Weight | 6000KG |
Item: automatic plastic thermoforming machine (hydraulic system)
Model: HY750-520
Driving system: hydraulic power

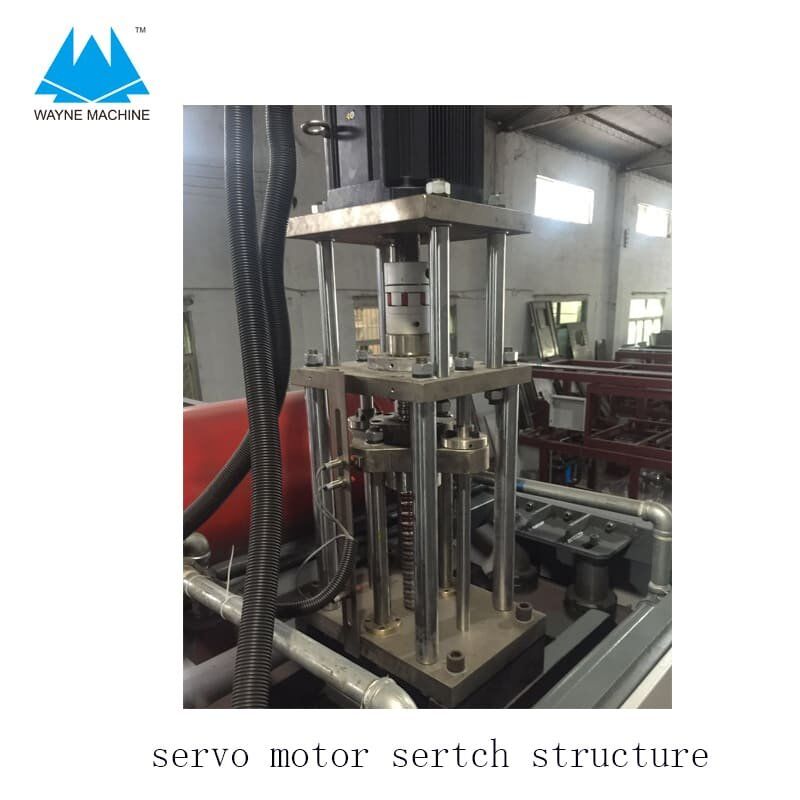

Mould stretch way: by servo motor
Function: HY series automatic hydraulic (cup) thermoforming machine is developed upon the plastic thermoforming craft, which is suitable to produce the PP, HIPS ,PET and PLA material to make plastic food containers. Such as plastic cups, bowls, tray and so on.
Thermoforming craft: plastic sheet heating→products forming by mold→products cutting by mold→products blowing out→products stacking
Feature:
1．Four-poles structure, durable ＃45 chrome plated steel with good rigidity and abrasion resistance.

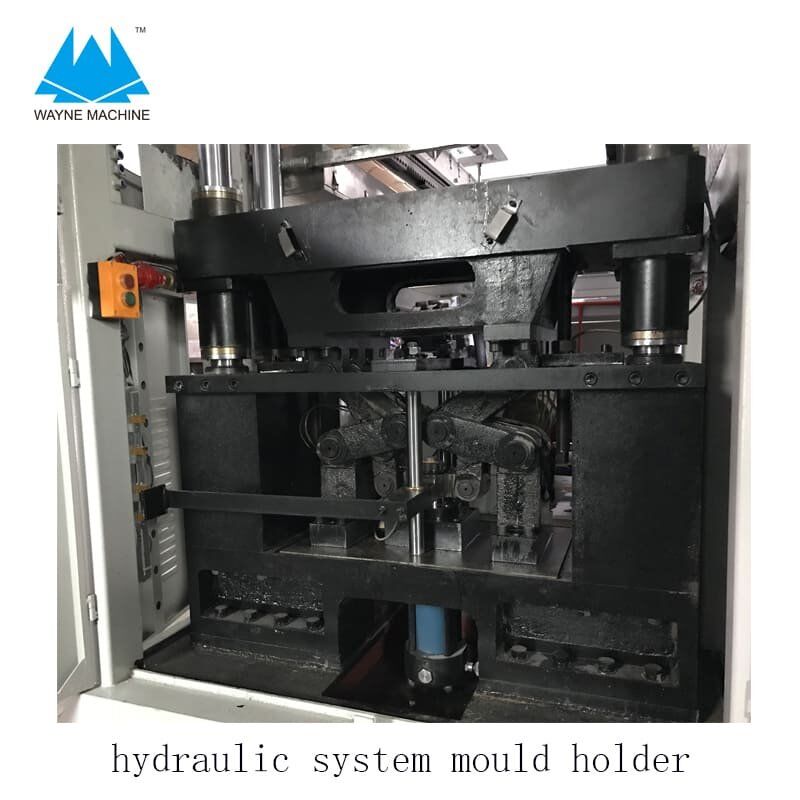

2．The ascent and descent function of hydraulic pressure stage help to reduce noises and shake.
3．10 zones automatic temperature controls with error ranges within 1.5℃

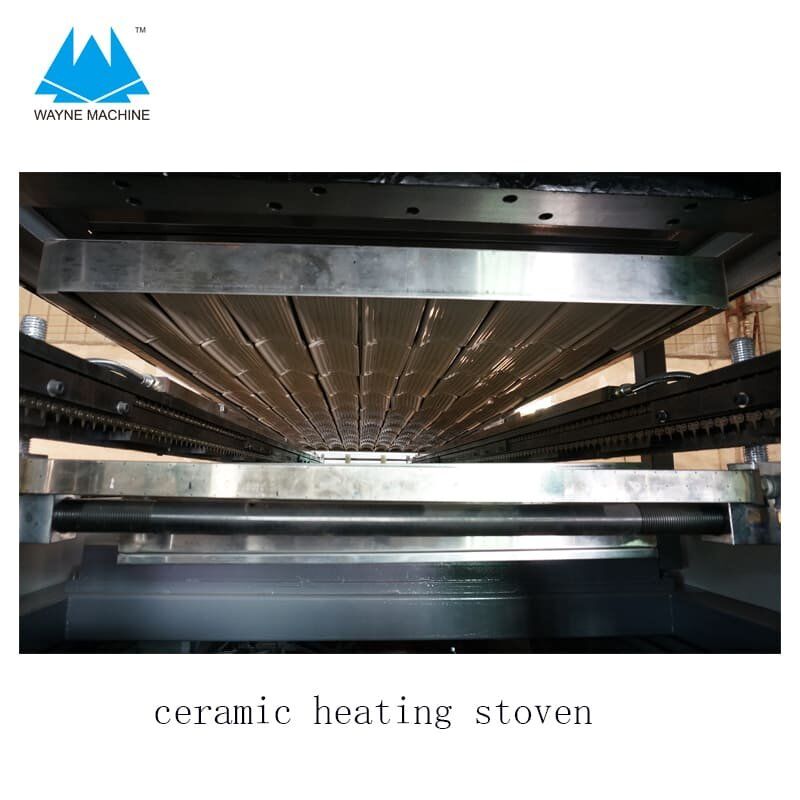

4．Heater use immersed ceramics far infrared radiation component. Which is safe and reliable.
5． Conveyor chain with gear and double sub-chain. Water-cooling tube in chain way ensures high cooling efficiency and water-saving. Stainless steel board covers the inner machine body. Nitrinized-38CrMoAlA-made chain track guarantees its hardness and durability .
6．Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
7．Frequency-conversion-driven sheet feeder, high precision sheet feeding with error rate ranging from 1mm to 5mm ensures sheet saving.
Main configuration list:
| No. | Item | Place and brand | Model |
| 1 | PLC | Siemens (Germany) | |
| 2 | Touch Monitor | Siemens (Germany) | 10.4 inch |
| 3 | Temperature Controller | Abzil (Japan) | |
| 4 | Heater zone | Up heater: 10 zones; Down heater: 10 zones | |
| 5 | AC Contactor | Schneider | LC1 D3210 LC1 D0910 |
| 6 | Relay | Omron (Japan) | MY2J 24VDC |
| 7 | Power Switch | MEAN WELL（Taiwan） | S-145-24 |
| 8 | Solid state relay | Fotek (Taiwan) | |
| 9 | Proximity Switch | Omron (Japan) | TL-Q5MC1-Z 30VDC |
| 10 | Air Switch | China People | 160A/ DZ47-63/ C63 DZ47-63/ C25 DZ47-63 |
| 11 | Electromagnetically valve | SMC (Japan) | VG342-5G-10A VFS4110-5EB-04 VXD2130-04-5G1 |

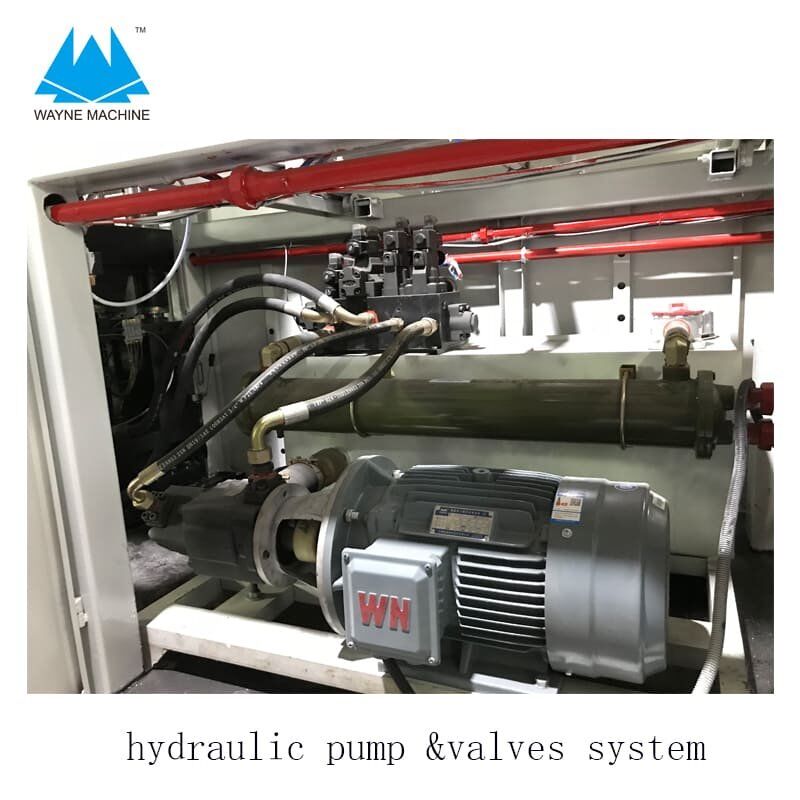

| 12 | Hydraulic electromagnetic Valve | YUKEN (Taiwan) | DSHG-04-3C2-T-D24-N1 DSHG-04-3C2-T-50 DSG-03-2B8-D24-N1-50 |
| 13 | Heater | Tian Bao (Jiang su) | Size:80*240mm 220V/ 650W/800W |
| 14 | DC motor reduction box | YONGKUN (Taiwan) | NCH40 1:15 2.2KW |
| 15 | Hydraulic system oil pump | Taike (Taiwan) | |
| 16 | Main motor | Siemens Bade | 15kw; Y160L-6P-960r/min |
| 17 | Stretch motor | Japan Yaskawa | 11kw |
| 18 | Chain transmission motor | Japan Yaskawa | 4.4kw |
Plastic sample photo:
Thermoforming machine video:
Please click the Youtube link below to see the machine running video:
https://www.youtube.com/watch?v=j_Aq07Kmog8&t=36s
Contact us now for more detailed spec!
