The W-400M model packaging machine is available for plastic cups and bowls , with the function of autaomic counting and packaging.
Feature: The plasitc cups can be packaged in multi rows. Like 2 rows/bag, 3 rows/bag, or 4 rows/bag.
| Model | W-400M |
|---|---|
| Available products | Plastic bowl, Plastic cup |
| Max capacity | 30 circle/min |

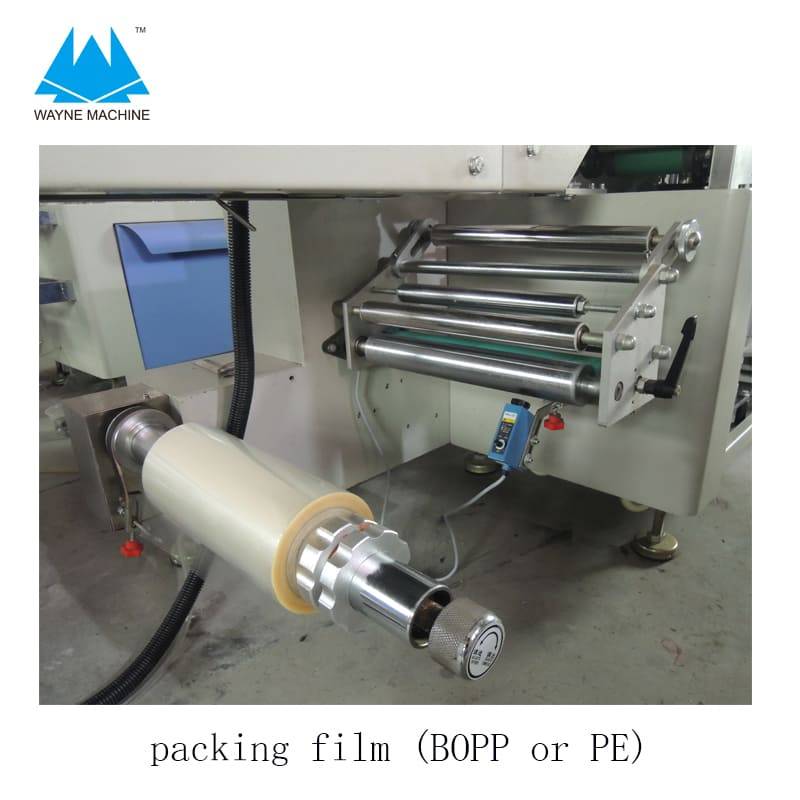

| Available packaging film | BOPP, PE |
| cup diameter range | 50-120mm |
| cup lid's gap | ≥2.5mm |
| Packing film thickness | 0.025-0.06mm |
| Packing film width | 90-400mm |
| Power supply | Single phase; 220V |
| Total power | 4.5KW |
| Dimension | 5200*900*1200mm |
| Weight | 850KG |
product item: automatic cup counting & packaging machine
Model: W-400M
Main Feature:
Main configuration list:
| No. | Name | Place and brand | Model |
| 1 | PLC | Xinjie | XCC-24T-E |
| 2 | Touch screen | Weinview (Taiwan) | 7 inch |
| 3 | Film pulling motor | Delta (Taiwan) | 0.75KW |

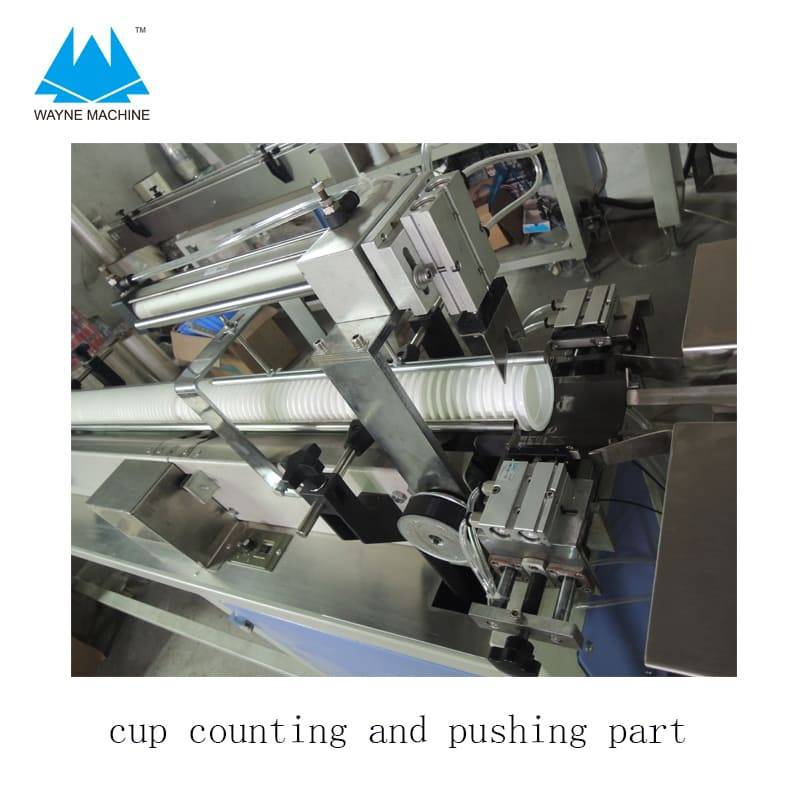

| 4 | Cup counting motor | Stepping motor | 110BYG3503 |
| 5 | Conveyor motor | Torque adjusting motor | 0.75Kw |
| 6 | Temperature controller | WINHB | CHB-702 |
| 7 | Relay | Omron (Japan) | MY2J 24VDC |
| 8 | Power Switch | MEAN WELL（Taiwan） | S-145-24 |
| 9 | Solid-state relay | Lingtong (Beijing) | D210K |
| 10 | Proximity Switch | Omron (Japan) | TL-Q5MC1-Z 30VDC |
| 11 | Air Switch | LG (Korea) | 6A(2P); 10A(2P) |
Packaging Samples:
Please click the Youtube link below to see the machine running video:
https://www.youtube.com/watch?v=ucFqPPBRF7w
